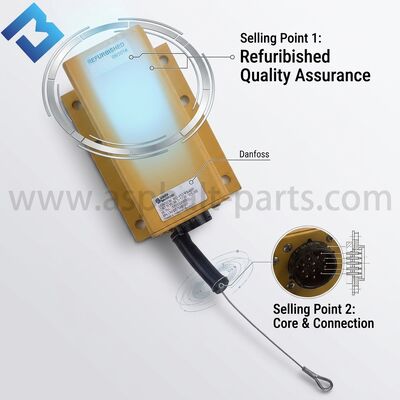

Tracer String Sensor 317-7751 — Product Features for PM200 Road Milling Machines

The 317-7751 tracer string sensor is a precision position-measurement component designed for the electrical system of PM200 road milling machines. It plays a critical role in the automatic leveling function, ensuring consistent milling depth and surface smoothness.

Working Principle

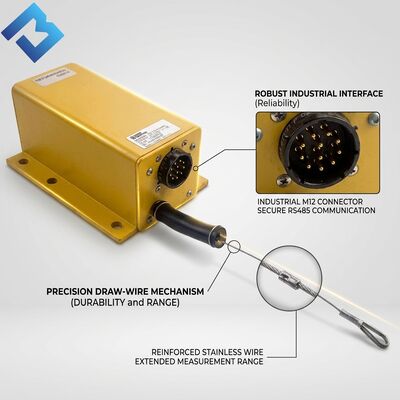

This sensor operates on a draw-wire principle: a spring-loaded cable reel is coupled to a rotary encoder, and as the side plate moves relative to the machine frame, the cable extends or retracts, converting linear displacement into an electrical signal. The controller uses this signal to calculate current milling depth and adjust the front lifting columns accordingly.

Key Technical Characteristics

The sensor is engineered for harsh road construction environments. It delivers reliable performance under dust, moisture, vibration, and temperature fluctuations typical of milling operations. Measurement accuracy directly influences milling precision, with modern leveling systems achieving depth tolerances within millimeters.

Installation and Compatibility

Designed as a direct replacement for part number 317-7751, this sensor matches the original mounting configuration and electrical interface. It is positioned within the machine’s electrical system and weighs approximately 2 kg per unit. Standard packaging includes carton, pallet, or wooden case options for global shipping.

Application Value

In automatic leveling systems, this sensor continuously monitors the position of the side plate running on the reference surface. When pavement elevation changes, the sensor signal triggers the control system to raise or lower the front legs, maintaining the preset milling depth. This closed-loop feedback significantly improves surface flatness and reduces material waste
