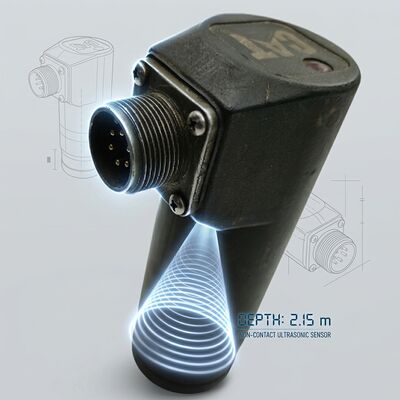

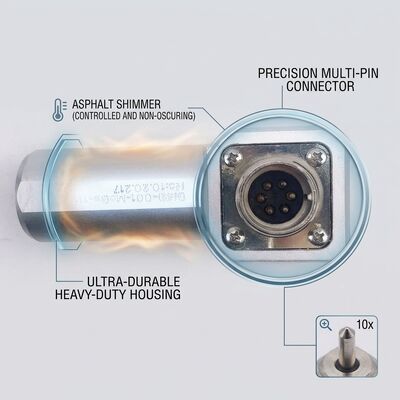

369-4794 Level Gauge Paver Material Level Sensor for AP655F AP355 Asphalt Paver Spare Parts

1. System Overview
On the AP655F asphalt paver, the material leveling system represented by P/N 369-4794 is a non-contact ultrasonic sensing system. Its core mission is to automatically maintain a constant height of the material pile (asphalt mix) in front of the screed, which is a critical factor for ensuring paving smoothness and quality.
Core Function: To continuously monitor the height of the material in front of the screed and use an electronic control system to automatically regulate the speed of the conveyors (Feeders) and augers (Augers), achieving a closed-loop control of "increasing material feed when low, decreasing feed when high."
Ultimate Goal: To ensure a continuous, uniform, and constant supply of material. This prevents paving defects such as tearing, indentations, bumps, or material segregation caused by fluctuating material volume. It also significantly reduces the operator's workload.

2. Main Components
While this specific part number may point to one of these components, the entire system typically includes:

• Ultrasonic Sensors: These are the "eyes" of the system. Usually, one is mounted on each side, above the front of the screed, pointing down at the material pile. They continuously emit ultrasonic waves and receive echoes, calculating the distance to the top of the pile based on the time difference.
• Control Module / Controller: This is the "brain" of the system. It receives signals from the ultrasonic sensors and compares them to the desired material height value preset by the operator. It then calculates a command signal based on any deviation.
• Operator Interface: Loed on the control panel in the operator's station. The operator uses it to turn the automatic control ON/OFF and to set the desired material height (often expressed as a percentage of the height of the material gates, e.g., set between 60%-80%).
• Actuators: These are the "hands and feet" of the system. Commands from the control module are sent via electrical circuits to electro-proportional valves that control the hydraulic motors for the conveyors and augers. By varying the current, the system precisely adjusts hydraulic flow, thereby infinitely varying the speed of material feed and distribution.

3. How It Works: The Process

1. Measurement: The left and right ultrasonic sensors continuously measure the distance to the material surface.
2. Comparison: The control module compares the measured actual distance to the operator-preset ideal distance (which represents the ideal material height).
3. Calculation: If the material level is too low (actual value > preset value), the controller calculates a need to increase feed speed. If the level is too high (actual value < preset value), it calculates a need to decrease feed speed.
4. Execution: The control module sends an electrical signal to the hydraulic electro-valves, adjusting the speed of the conveyors and augers to change the material feed rate.
5. Feedback: The change in feed rate causes the material height to change. The sensors detect this new change, and the cycle repeats. This continuous closed-loop process maintains a dynamic equilibrium.

4. Key Features and Advantages

• Non-Contact Measurement: Ultrasonic technology is reliable and maintenance-free, unaffected by material temperature, viscosity, or color.
• Automatic Control: Significantly reduces operator workload, allowing them to focus on the paver's direction of travel and overall operation.
• Improved Paving Quality: A constant material head is the most fundamental requirement for ensuring pavement smoothness, density, and uniformity.
• Reduced Material Waste and Mechanical Stress: Prevents excessive wear on auger blades and the screed caused by overloads, and avoids stoppages and screed cooling due to a lack of material.
• Independent Left/Right Control: The left and right material levels are typically sensed and controlled independently, allowing the system to handle asymmetric situations like one side running out of material.

5. Important Considerations

• Calibration: Sensors must be correctly installed and calibrated to ensure measurement accuracy.
• Environmental Interference: Extreme weather (e.g., heavy rain, thick fog) or strong air turbulence (e.g., high winds) can theoretically cause minor interference with ultrasonic signals, though in practice, the impact is usually minimal during standard paving operations.
• Maintenance: Keep sensor probes clean and free of debris like mud or asphalt to ensure proper operation.

In summary, the material leveling system represented by P/N 369-4794-00 for the AP655F paver is a highly integrated, intelligent ultrasonic automatic feed control system. It is a core component of modern high-performance pavers, transforming traditional "experience-based operation" into "automated precision control." It is an indispensable piece of equipment for guaranteeing high-quality paving operations.
