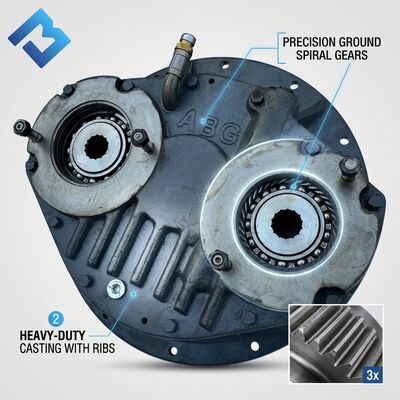

ABG6820C Paver Pump Distributor Gear RM80742034 Transfer Case Assembly For ABG226 Paver

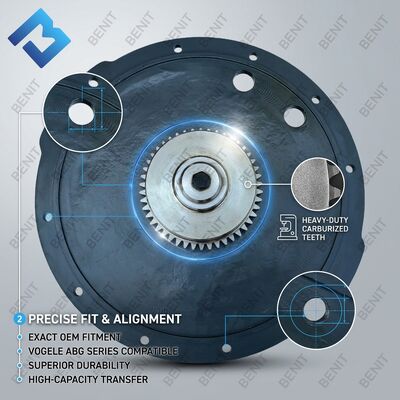

This pump distributor gear and transfer case assembly is built for the hydraulic drive train of ABG226 and ABG6820C asphalt pavers. The distributor gear RM80742034 delivers oil from the pump to the travel and conveyor circuits, while the matched transfer case keeps the input and output shafts aligned under continuous paving load. Both parts are produced as a matched set, so the gear mesh, backlash and shaft fit are checked before packing.

• Matched gear and case set - distributor gear RM80742034 and transfer case are lapped together, so backlash stays within 0.05-0.15 mm after installation.
• Carburized alloy steel - 20CrMnTi blank, carburized to 0.8-1.2 mm case depth and hardened to HRC 58-62 for abrasive paving dust.
• Ground tooth profile - teeth are profile ground after heat treatment, keeping the contact pattern centred and reducing whine at working pressure.
• Direct replacement fit - same spline count, bore and mounting flange as the original part, no machining needed on site.
• Road-tested batch - every batch is run on a test bench for leakage and rotation torque before shipment, with test report provided.

The assembly is used on ABG226 and ABG6820C pavers when the distributor gear shows scoring, tooth pitting or metal particles in the hydraulic oil, and when the transfer case shows bearing play or oil seepage at the shaft seal. Please confirm your machine serial number and the original part number on the old gear before ordering, so we can verify the spline and flange version for your production year.

• Each gear is wrapped in anti-rust film, seated in a shock-proof foam insert and packed in an export carton.
• Pallet or wooden box packing for LCL and full container shipments.
• Machinery test report and outgoing inspection video provided with every order.
• Online video technical support during installation and run-in.
• Payment terms: T/T, L/C, Western Union.
